The main technical parameters, automatic edge banding machine:
Automatic edge banding machine thickness (not the choice of pre milling):10-60 mm
The minimum width of the workpiece automatic edge banding machine: 80 mm
The minimum length automatic edge banding machine workpiece (not pre milling):160 mm
Automatic edge banding machine sealing edge width (not pre milling):15-65 mm
Automatic edge banding machine sealing material thickness: 0.4-15 mm
Automatic edge banding machine conveyor belt speed: 10.5/18 m/min
Automatic edge banding machine frequency conversion device: 200Hz
Automatic edge banding machine total power: 9 kw
Automatic edge banding machine pressure: 6 bar
Automatic edge banding machine voltage: 380 V
Automatic edge banding machine weight: 1100 kg
Automatic edge banding machine size (L * W * H):3320 x 1750 x 1710 mm
Automatic edge banding machine function: edge, glue welt, double rail head, finishing, polishing
上一篇:Full automatic linear edge banding machine BWM-106

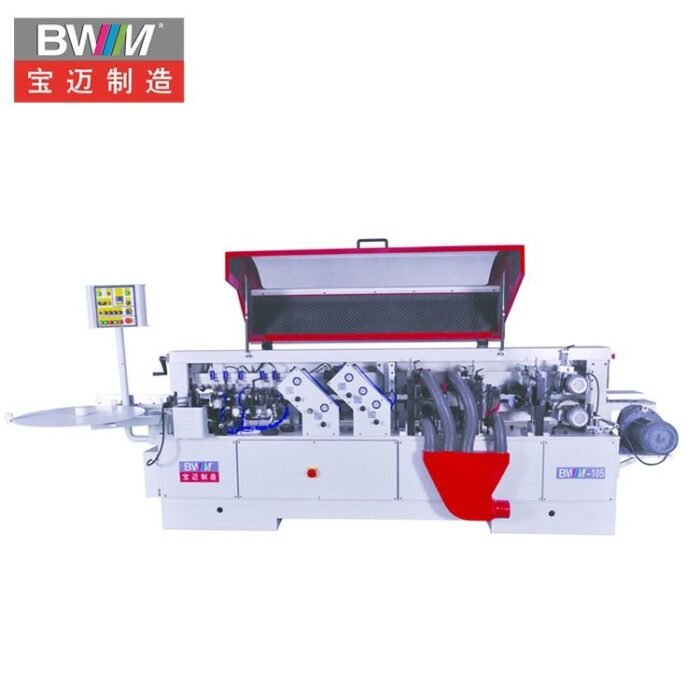

下一篇:Automatic edge banding machine BWM-105
