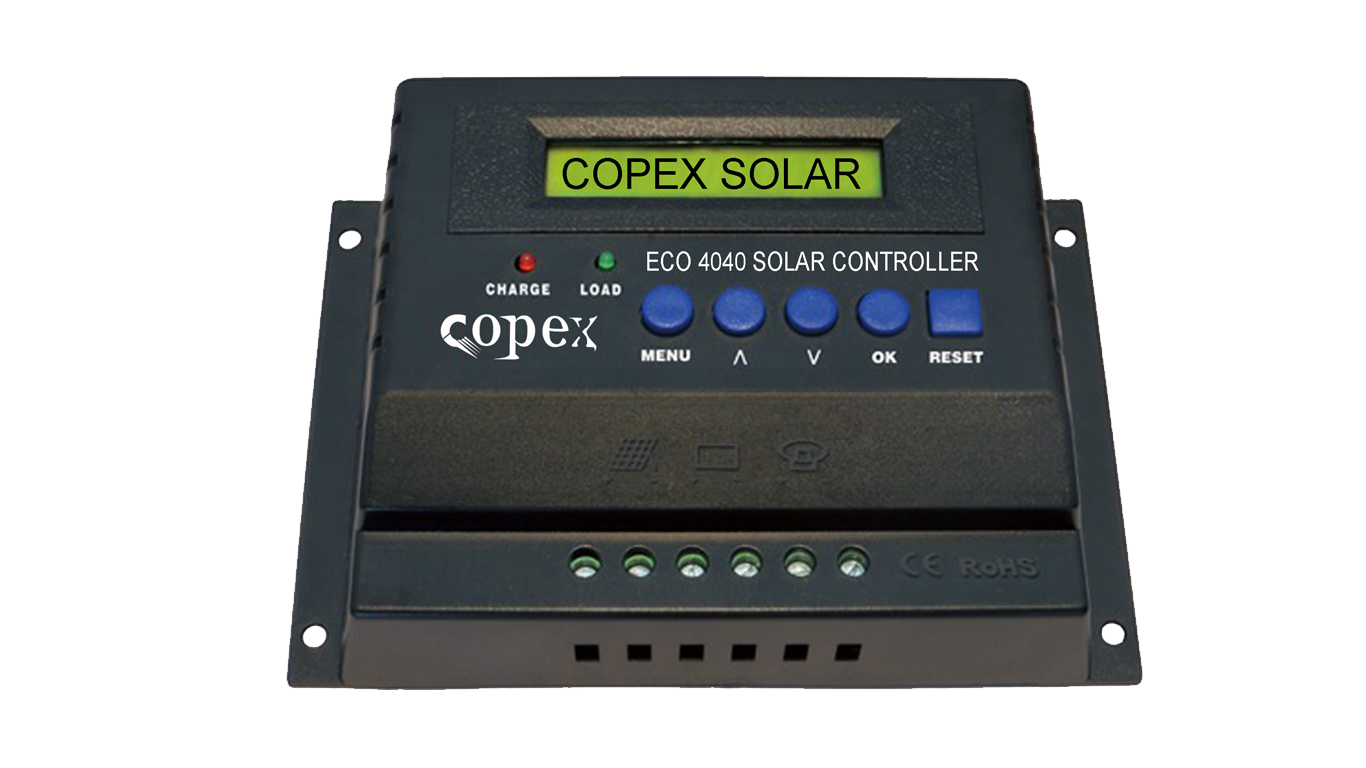

Copex SOLAR CONTROLLER-ECO 4040
296
People watching this product now!
DESCRIPTION :
The ECO series (economic) has LCD display, The LCD will show the voltage of battery, charge current and current of loads in turn of every 5 seconds. Users can setup the charge-off voltage, the load off voltage, the load-on voltage according to the users requirements.
40A -12/24V
Features:
Overload protection
Short circuit protection
Reverse discharge protection
Reverse polarity connection protection
Thunder Protection
Low voltage protection
Overcharge Protection
Battery stop & charge HVD sets up
Charge & low voltage LCD sets up
Display the capability of the battery SOC
Load & comeback setups.
Intellectualized temperature compensation
Store, calculate and display the charged AH on the LCD screen.
Working temperature:- 25o C?.+55oC
Technical Specifications:
Rated Voltage 12V/24V/ Auto Work
Max Load Current 40A
Input voltage range 12V-17V/24V-34V
Length = 1m charge loop drop 0.25V
Length = 1m discharge loop drop 0.05V
Over voltage protection 17V/34V
Full Charge Cut 13.7V/27.4V
Low Voltage Cut 10.5V-11V/21V-22V
Temperature Compensation -3mv/o C/cell
Ambient temperature -25oC ? +55oC
