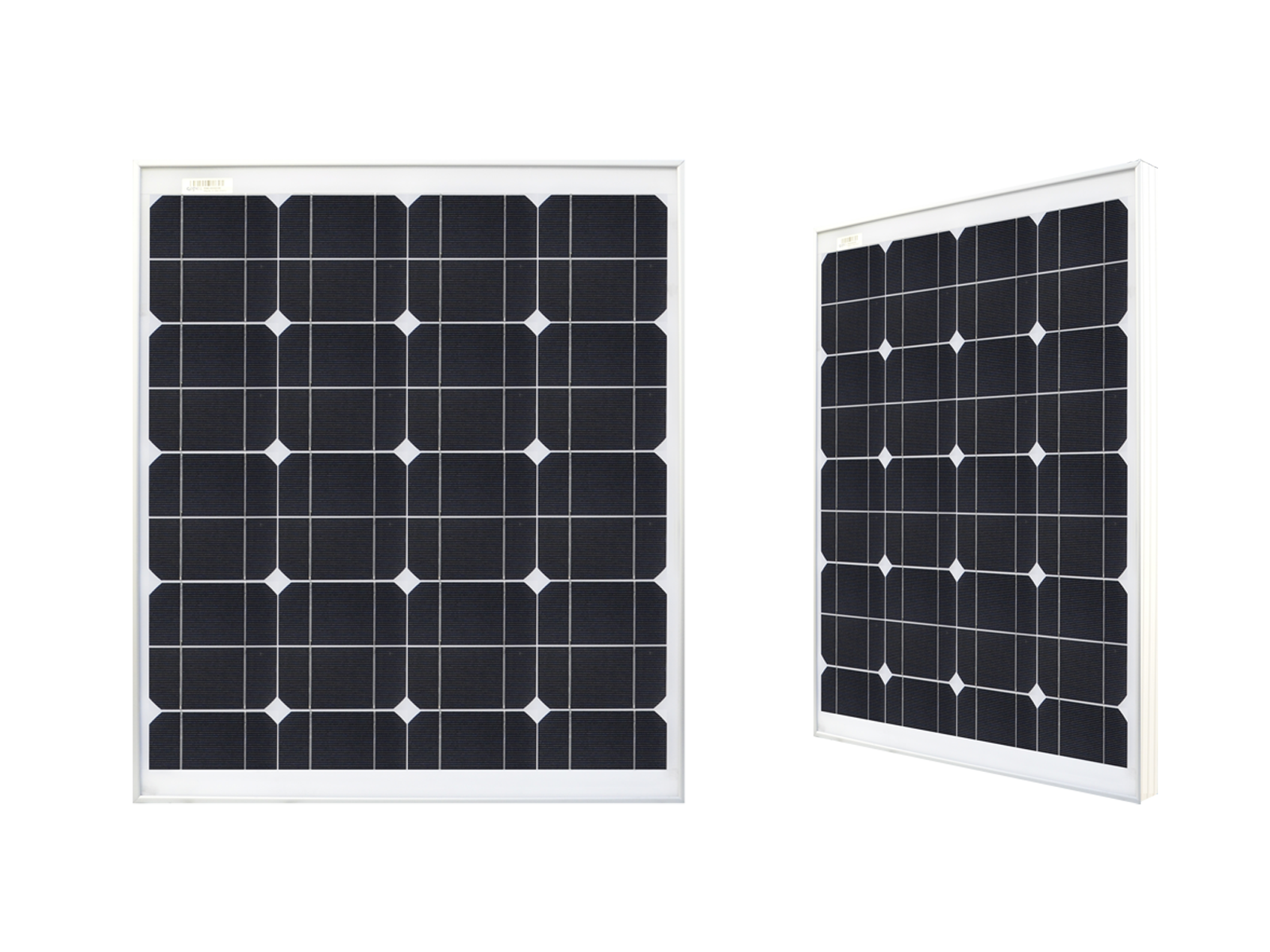

Copex 40 Watt Mono Crystalline Solar Panel – M 40

DESCRIPTION :
40 Watt Mono Crystalline Solar Panel
M 40 is a robust solar module with 36 solar cells. These modules can be used for off-grid solar applications. Our meticulous design and production techniques ensure a high-yield, long-term performance for every module produced. Our rigorous quality control and in-house testing facilities guarantee COPEX Solar?s modules meet the highest quality standards possible.
Power supply for remote telecommunication equipment
Traffic, security environment, and other remote monitoring and signaling systems
Water pumping systems
Rural area applications
Other off-grid applications
Features
Residential roof-top systems
Commercial/industrial building roof-top systems
Large on-grid and off-grid solar power stations
Rural area applications
Other on-grid and off-grid applications
Increased system reliability, secured investment
Long term system reliability with IP67 Junction Box
Robust frame to hold 5400 Pa load
Salt Mist, ammonia and blowing sand resistance, apply to seaside, farm and desert environment
Extra value to customers, more benefits
Dedicated customer support teams are staffed by technical support engineers and after-sale customer service representatives.
90% power output over 20 years warranty
80% power output over 30 years warranty
SPECIFICATION
Electrical Specification Nominal maximum power 40W
Optimum operating Voltage 17.6V
Optimum Operating Current (Imp) 2.28A
Open Circuit Voltage (Voc) 21.8V
Short Circuit Current (Isc) 2.48A
Operating Temperature -40oC~+85oC
Maximum System Voltage 1000V (IEC)/600V (UL)
Maximum Series Fuse Rating 10A
Power Tolerance ?5W
Temperature Cofficient Pmax -0.45/oC
Voc -0.35/oC
Isc -0.060/oC
NOCT 45oC
Mechanical Data Cell Type Mono crystalline
Cell Arrangement 36 (4?9)
Dimensions 513x547x35mm
Weights 4 (kg)
Front Cover Tempered glass
Frame material Anodized aluminum alloy
Standard Packaging (Modules/Cartoon) 2pcs
Engineering Drawing
I-V Curves
