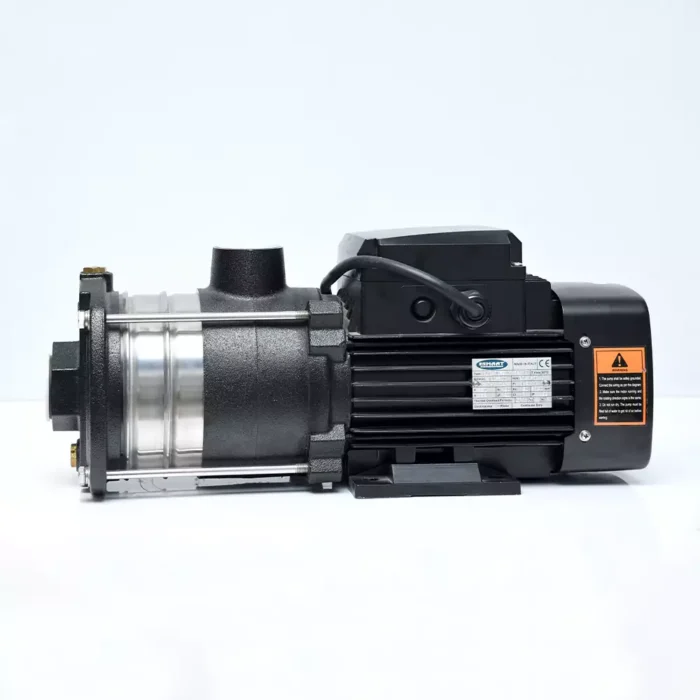

MAAT 3Phase Stainless Steel Horizontal Multistage Pump- RMXC 10

RMXC 10 3Phase Stainless Steel Horizontal Multistage Pump (3 Phase):
The RMXC 10 3Phase series from MAAT is engineered for high-efficiency water management in both industrial and demanding residential applications. This versatile pump series offers robust performance and reliability, ideal for pressurization, irrigation, and handling non-aggressive liquids in a variety of settings.
Key Features:
Pump Head Range: The RMXC 10 3Phase pumps provide exceptional head heights from 17.9 meters to 47.8 meters, catering to various application needs.
Flow Rate: Designed to manage efficient water flow for both residential and industrial systems.
Power Output: Available in multiple power options to match specific operational requirements:
0.75 kW (1.0 HP)
1.1 kW (1.5 HP)
1.5 kW (2.0 HP)
2.2 kW (3.0 HP)
Applications:
The RMXC 10 3Phase series is ideal for:
Industrial Pressurization Systems: Ensures stable and consistent water pressure for industrial operations.
Advanced Irrigation: Suitable for complex irrigation systems requiring robust water handling.
Non-Aggressive Liquid Transfer: Efficiently manages non-aggressive liquids in diverse industrial environments.
High-Demand Water Supply: Perfect for high-capacity water supply and pressurization needs in large-scale settings.
Construction and Material Features:
Shaft Material: RMXC 10 3Phase is crafted from AISI 304 stainless steel for superior resistance to corrosion and long-term durability.
Maximum Liquid Temperature: Capable of handling liquids up to +85?C for versatile applications.
Maximum Suction Depth: Efficiently draws water from up to 8 meters.
Operating Pressure: Handles up to 10 bar pressure, ensuring reliability in various conditions.
Motor Design: Features a sealed motor with copper winding and external ventilation, equipped with thermal protection for safe operation in 3-phase models.
Protection Class: Rated IP55 for enhanced protection against dust and water ingress.
Material Specifications:
Mechanical Seal: Reliable Carbon/Ceramic seal for durability and efficiency.
Diffuser, Sleeve, and Impeller: Constructed from AISI 304 stainless steel for increased rust resistance and longevity.

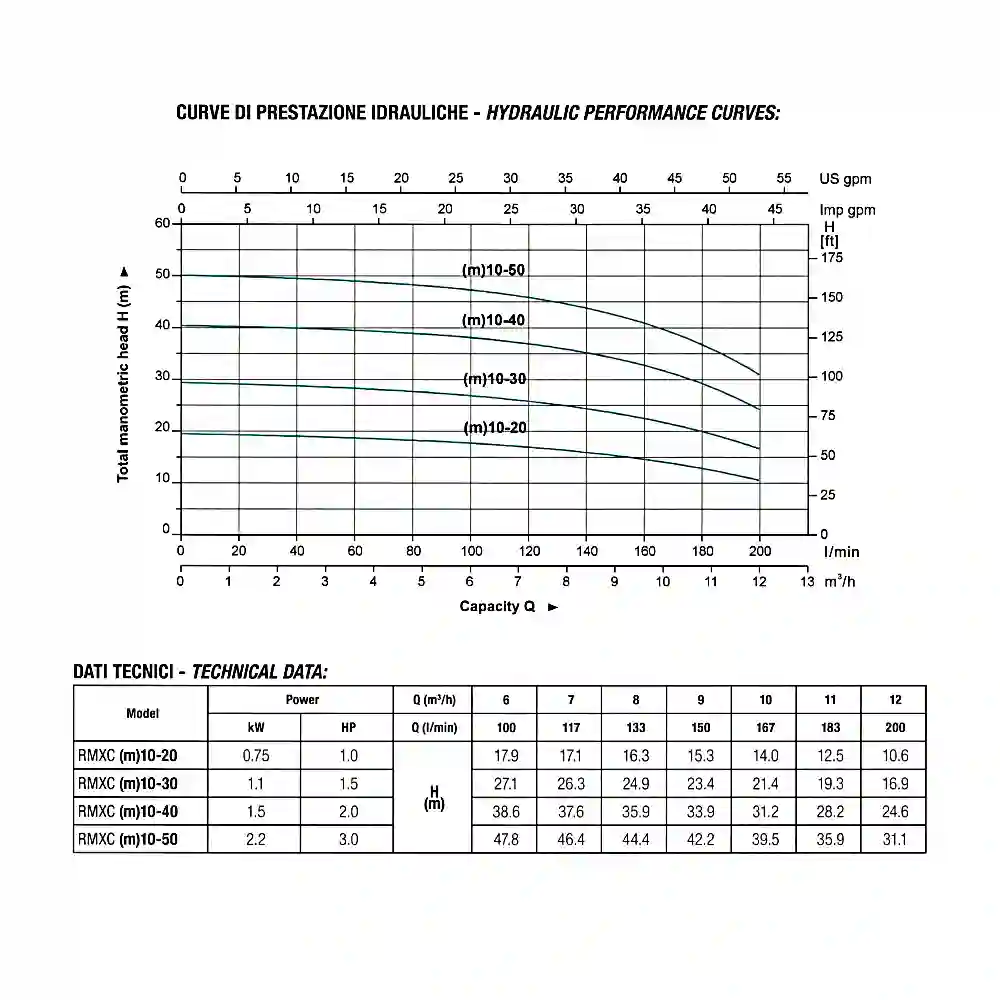

RMXC 10 3Phase Models:
RMXC1020T/MM:
Pump Head: 17.9 meters
Size: 1 1/2
