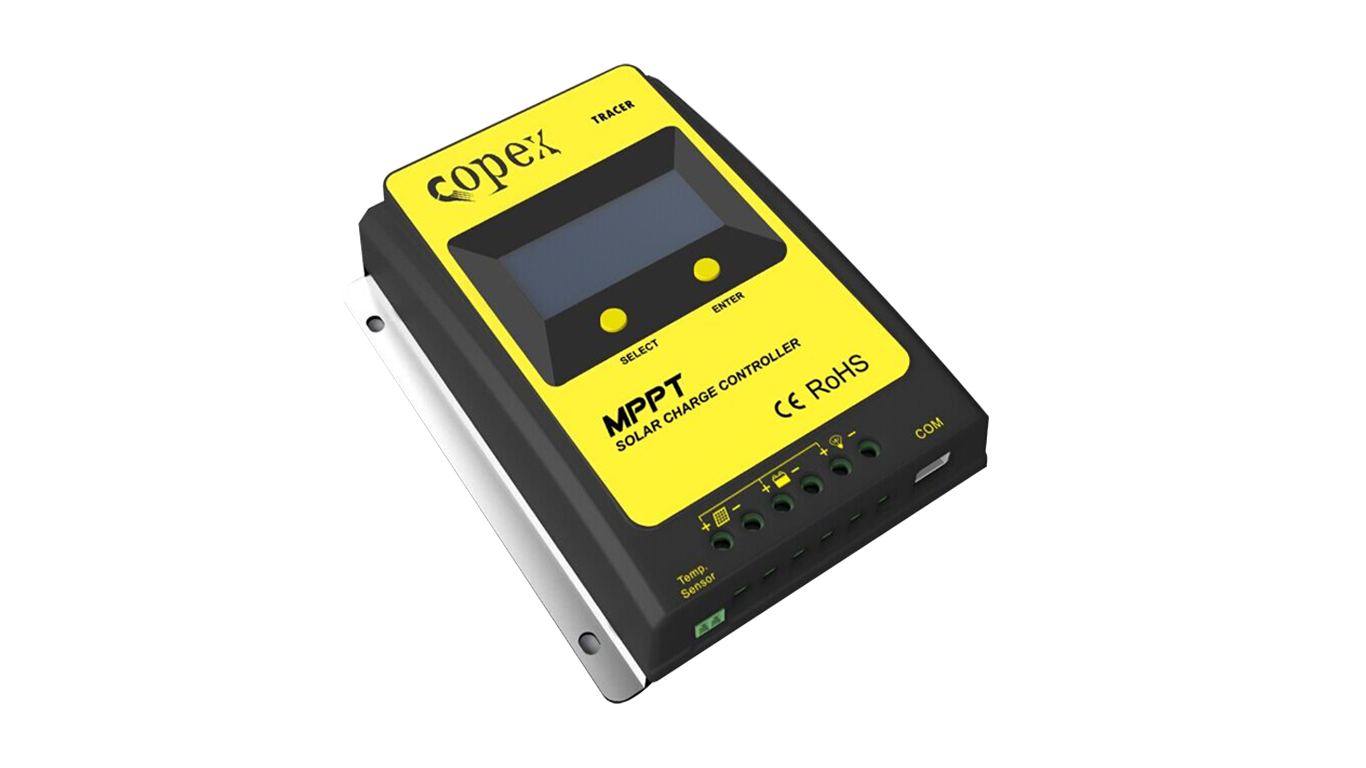

Copex A series adopts common positive design and advanced MPPT control algorithm- Tracer 1024-4024

246 People watching this product now!

DESCRIPTION :

Tracer A series adopts common positive design and advanced MPPT control algorithm.

The products can track the MPPT point fast and accurately in any situation which will improve energy efficiency and obtain the maximum solar energy.

Vendor:

Copex Solar Energy Systems

SPECIFICATION :
Model Tracer 1024 Tracer 2024 Tracer 3024 Tracer 4024
Nominal system voltage 12/24VDC auto work
Rated charge current 10A 20A 30A 40A
Rated discharge current 10A 20A 30A 40A
Battery input voltage 8~32V
range
Max. PV open circuit 100V(at minimum operating environment temperature)
voltage 92V(at 25? environment temperature)
MPP voltage range VBAT+2V~ 72V
Max. PV input power 130W(12V) 260W(24V) 260W(12V) 520W(24V) 390W(12V) 780W(24V) 520W(12V) 1040W(24V)
Equalize charging voltage Sealed: 14.6V, Flooded: 14.8V
Boost charging voltage Gel: 14.2V, Sealed: 14.6V, Flooded: 14.8V
Float charging voltage 13.8V
Low voltage reconnect voltage 12.6V
Low voltage disconnect voltage 11.1V
Self-consumption =20mA/12V; =16mA/24V
Temperature compensation coefficient -3mV/ ?C/2V(25 ?C)
Working temperature -25 ?C ~+45 ?C
Enclosure IP30
Overall dimension 172x139x44mm 220x154x52mm 228x164x55mm 252x180x63mm
Power terminals 12AWG(4mm2) 6AWG(16mm2) 6AWG(16mm2) 6AWG(16mm2)
Net weight 0.6kg 1.1kg 1.2kg 1.9kg
